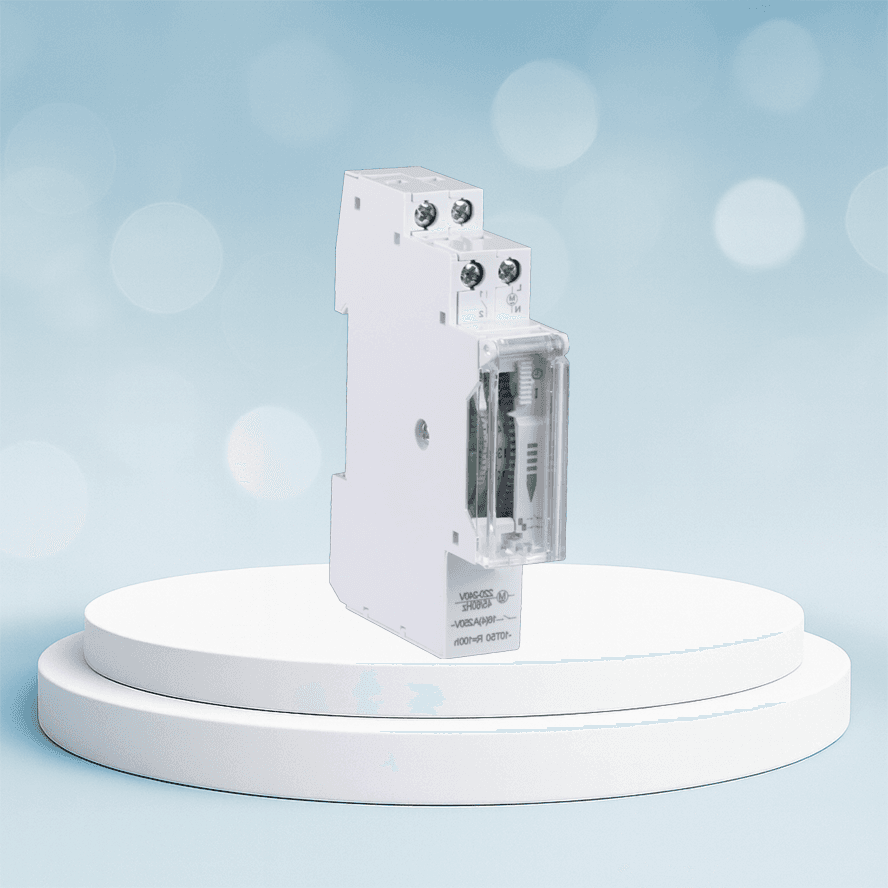

Analog Timer



DEKO Analog Time Switches are designed to automatically control electrical appliances at specific times of the day. With an electromechanical design and a precise servomotor, they provide reliable, durable, and easy-to-set solutions for residential, commercial, and industrial applications. Proudly Made in Türkiye, DEKO ensures every timer delivers quality, safety, and compliance with international standards.







---







Key Features:



⚡ Precise Timing with Servomotor: Stable and accurate switching performance.



⚡ Power-Loss Reserve: Maintains the program for up to 100 hours during power outages.



⚡ Supply Voltage: Operates with 220 V / 50 Hz.



⚡ Independent Auxiliary Contact: Usable in both AC and DC circuits up to 400 V.



⚡ 96 Program Segments: Each step corresponds to 15 minutes on the dial.



⚡ 24-Hour Dial: Entire day displayed on a single disc.



⚡ Two Operating Modes: Selectable manual or automatic operation.



⚡ DIN-Rail Mounting: Fits standard 36 mm (EN 50022) rail.



⚡ Protection Recommendation: Must be protected by an independent thermal-magnetic circuit breaker (automatic fuse).



⚡ Installation Note: Should not be installed directly next to contactors or devices generating strong magnetic fields.





---





Typical Applications:





⚡ Park and agricultural irrigation systems



⚡ Street and area lighting



⚡ Heating, cooling, and ventilation control



⚡ School bell systems



⚡ Energy-saving load management



---



Technical Snapshot:





⚡ Operating Voltage: 220 V ~ 50 Hz



⚡ Auxiliary Contact Rating: Up to 400 V AC/DC



⚡ Programming Resolution: 96 steps × 15 min



⚡ Mounting: DIN rail 36 mm (EN 50022)



⚡ Backup (Reserve): Up to 100 hours







---







Why Choose DEKO Analog Timers?



✅ Made in Türkiye with world-class quality.



✅ Reliable and precise control for residential, commercial, and industrial systems.



✅ Flexible integration with irrigation, lighting, HVAC, and energy-saving applications.



✅ Certified safety and performance trusted in global markets.

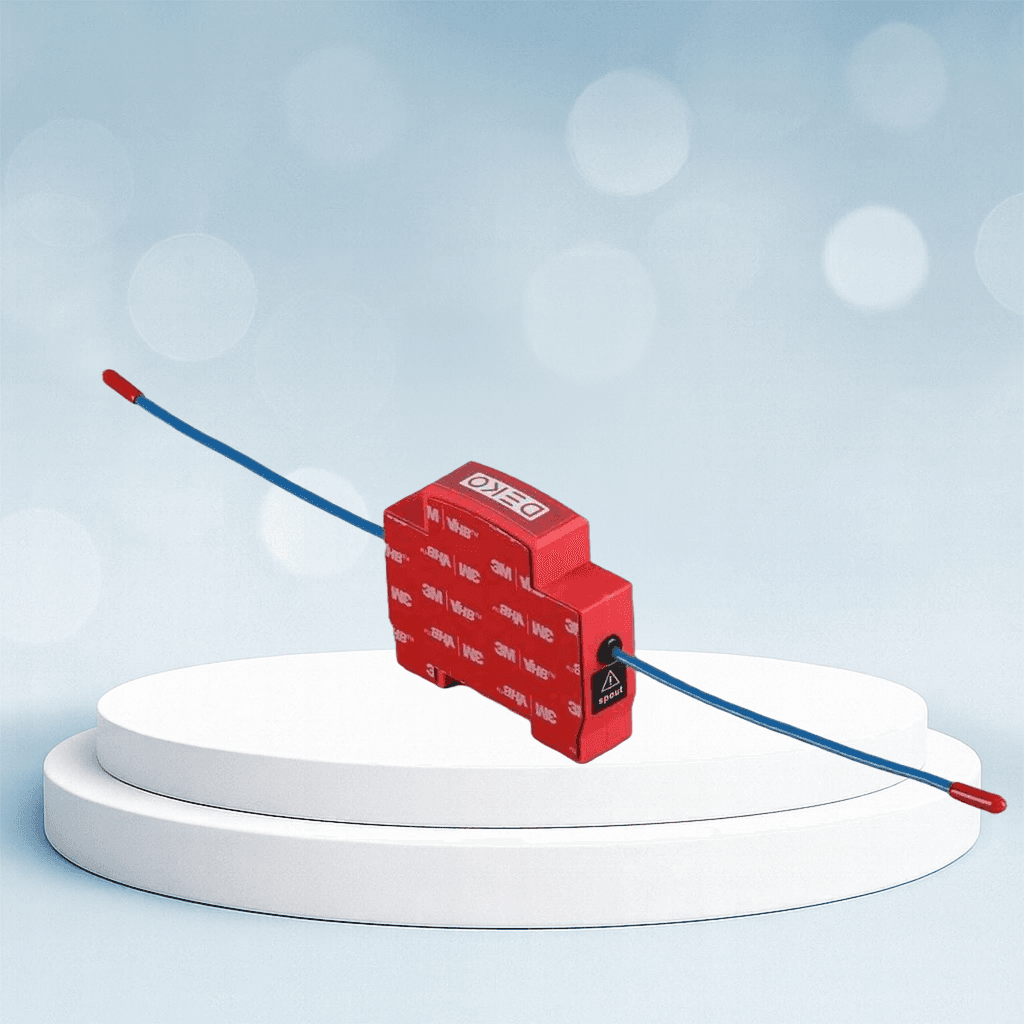

Hot Aerosol Fire Extinguishers



DEKO Hot Aerosol Fire Extinguishers are engineered to deliver rapid and reliable fire suppression in enclosed spaces such as electrical distribution panels, small enclosures, machinery compartments, and industrial cabinets. Activated automatically by heat or open flame, the aerosol agent floods the area and extinguishes the fire within seconds — ensuring maximum protection for equipment, property, and personnel.







---







Key Features:





⚡ Main Content: Hot aerosol fire-extinguishing agent.



⚡ Shell Material: High-durability ABS.



⚡ Ambient Environment: Suitable for extreme conditions from –50°C to 90°C.



⚡ Response Time: Activates in ≤ 6 seconds when exposed to fire or temperatures above 170°C.



⚡ Oxidizer Content: Sr(NO₃)₂ 60% + KNO₃ 20%.



⚡ Operating Condition: Automatically triggers upon open flame or heat above 170°C.



⚡ Installation Rail Type: Standard 3 mm rail mounting.



⚡ Quantity per Carton: 100 pcs.



⚡ Thermosensitive Cable Options: 10 cm / 50 cm / 100 cm / 200 cm.







---









Technical Characteristics:





⚡ Thermosensitive Wire:

Temperature-sensing induction wire detects heat along the entire cable length and activates internally at 170°C.



⚡ Shelf Life:

Operational lifespan of ten years.



⚡ Fire Extinguishing Range:



• 100 g aerosol → 1 m³ protection range

• 10 g aerosol → 0.1 m³

• Suitable for small enclosures, columns, and electrical boxes.





⚡ Recommended Applications:



• Household PZ30 boxes: 0.1 m³

• Small distribution boxes: 1 m³

• High/low-voltage cabinets: 3 m³ recommended





⚡ Installation:

Easy mounting using guide rails.







---









Why Choose DEKO Hot Aerosol Units?





✅ Maintenance-free protection with a 10-year service life.



✅ Ultra-fast activation for early-stage fire suppression.



✅ Works in extreme temperatures from –50°C to +90°C.



✅ Perfect for electrical cabinets, machines, vehicles, and compact enclosures.



✅ Safe, clean, non-pressurized, and environmentally friendly fire-extinguishing method.

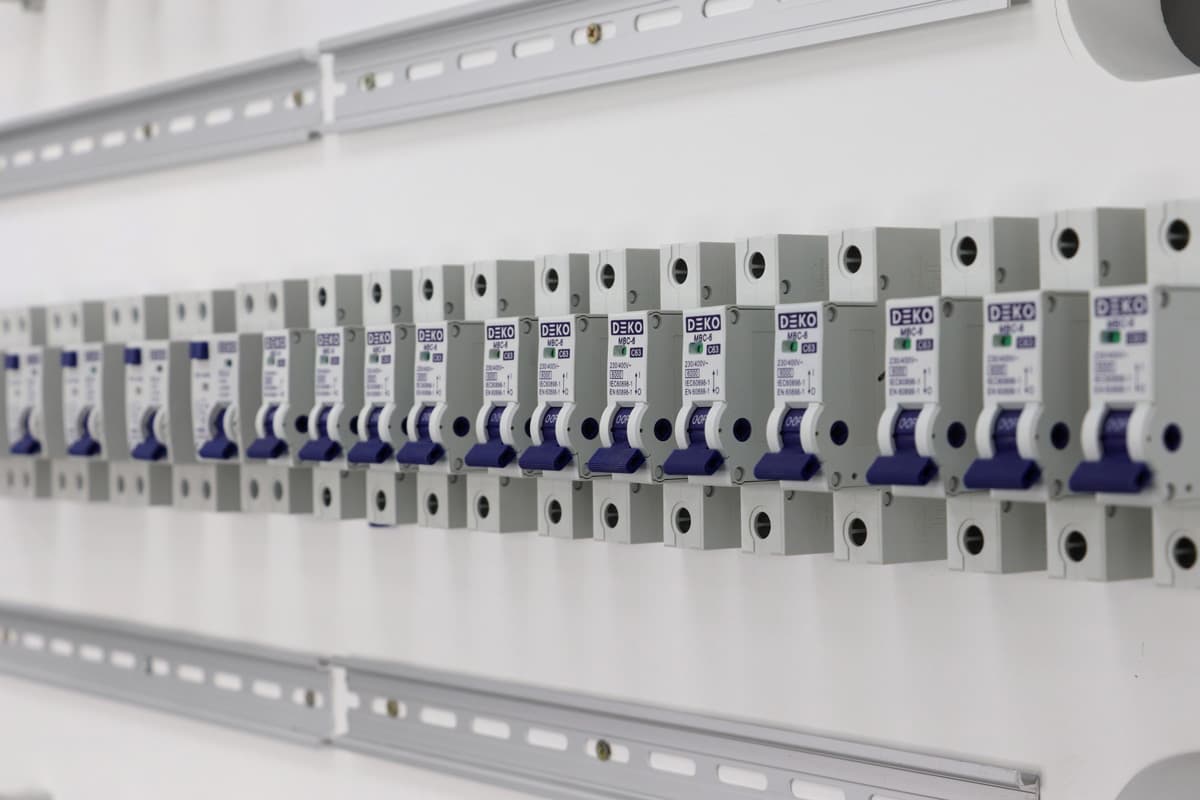

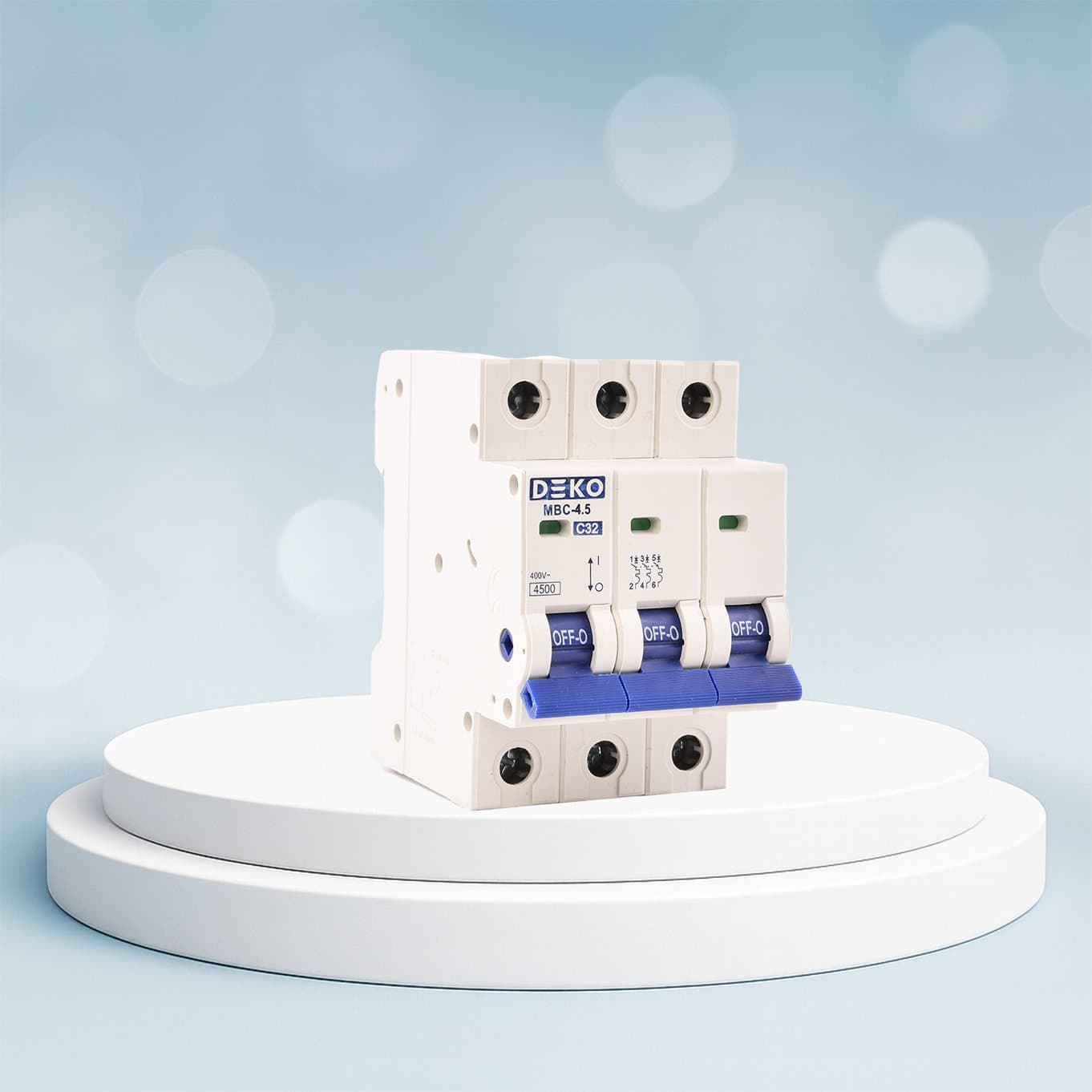

Miniature Circuit Breakers (MCBs)



DEKO Miniature Circuit Breakers (MCBs) are designed to provide reliable protection against overcurrent and short-circuit faults in residential, commercial, industrial, and renewable energy installations. With over 30 years of manufacturing expertise, DEKO ensures that every MCB delivers safety, durability, and compliance with international standards.







---







Key Features:





 ⚡  Wide Current Range: Available from 1A to 125A.



• ⚡  Poles: 1P, 1P+N, 2P, 3P, and 4P options.



• ⚡  Breaking Capacity: 4.5kA, 6kA, and 10kA, depending on the series.





• Tripping Curves:



  • ⚡  B Curve (3–5 In): Suitable for lighting and socket circuits with low inrush currents.

  • ⚡  C Curve (5–10 In): Ideal for general use, motors, and inductive loads with moderate inrush currents.

  • ⚡  D Curve (10–14 In): Designed for high inrush current applications such as transformers and discharge lamps.



• ⚡  Rated Voltage: 230/400V AC and dedicated DC versions available for solar and battery energy storage systems.



• ⚡  Compliance: Manufactured in Türkiye according to IEC/EN 60898-1 and IEC/EN 60947-2 standards.







---







Why Choose DEKO MCBs?



• ✅ Made in Türkiye with world-class quality.



• ✅ Reliable protection for people, equipment, and renewable energy systems.



• ✅ Flexible range covering residential, commercial, industrial, and DC applications.



• ✅ Certified safety and performance trusted in global markets.

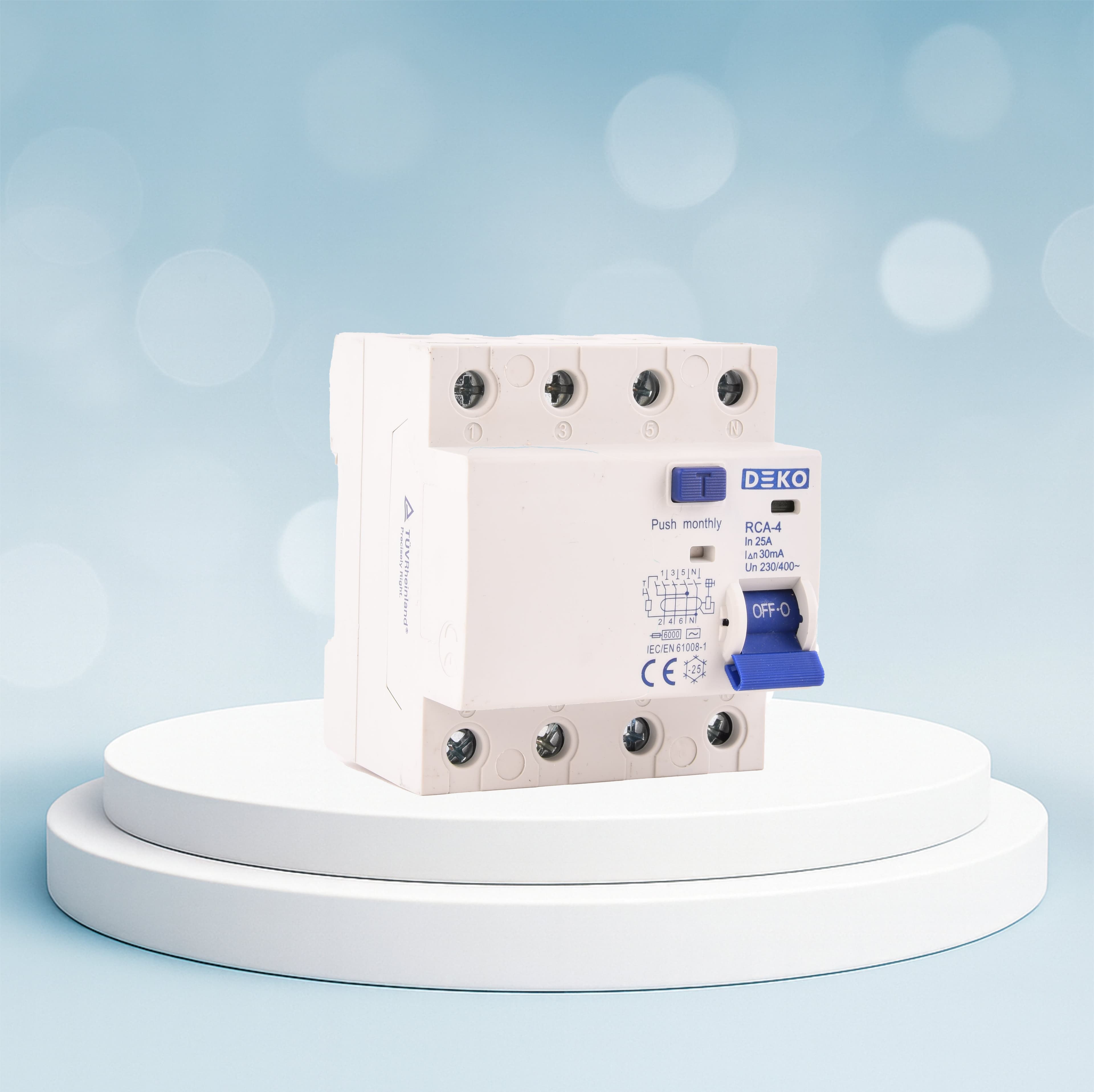

Residual Current Circuit Breakers (RCCB)



DEKO Residual Current Circuit Breakers (RCCBs) are designed to provide reliable protection against electric shocks and leakage currents in residential, commercial, and industrial installations. By instantly disconnecting the circuit when a leakage is detected, DEKO RCCBs ensure maximum safety for people and equipment.





---





Key Features:



• ⚡  Poles: 2P and 4P options available.



• ⚡  Rated Current Range: From 25A to 63A.



• ⚡  Rated Residual Operating Current (IΔn): 30mA (for personal protection) and 300mA (for fire protection).







• Tripping Characteristics:



  • ⚡  Type AC: Protection against pure AC leakage currents.

•

• • ⚡  Type A: Protection against AC and pulsating DC leakage currents.

•

• • ⚡  Type B: Protection against AC, pulsating DC, and smooth DC leakage currents — ideal for modern applications such as EV chargers, solar systems, and variable speed drives.





• ⚡  Rated Voltage: 230/400V AC.



• ⚡  Standards: Fully compliant with IEC/EN 61008-1.



• ⚡  Installation: Suitable for DIN-rail mounting in residential, commercial, and industrial panels.





---



Why Choose DEKO RCCBs?



• ✅ Made in Türkiye with over 30 years of manufacturing expertise.

• ✅ Protects both people and property against leakage currents and electrical fires.

• ✅ Flexible range covering homes, offices, factories, renewable energy, and EV charging systems.

• ✅ Certified safety and trusted quality in global markets.

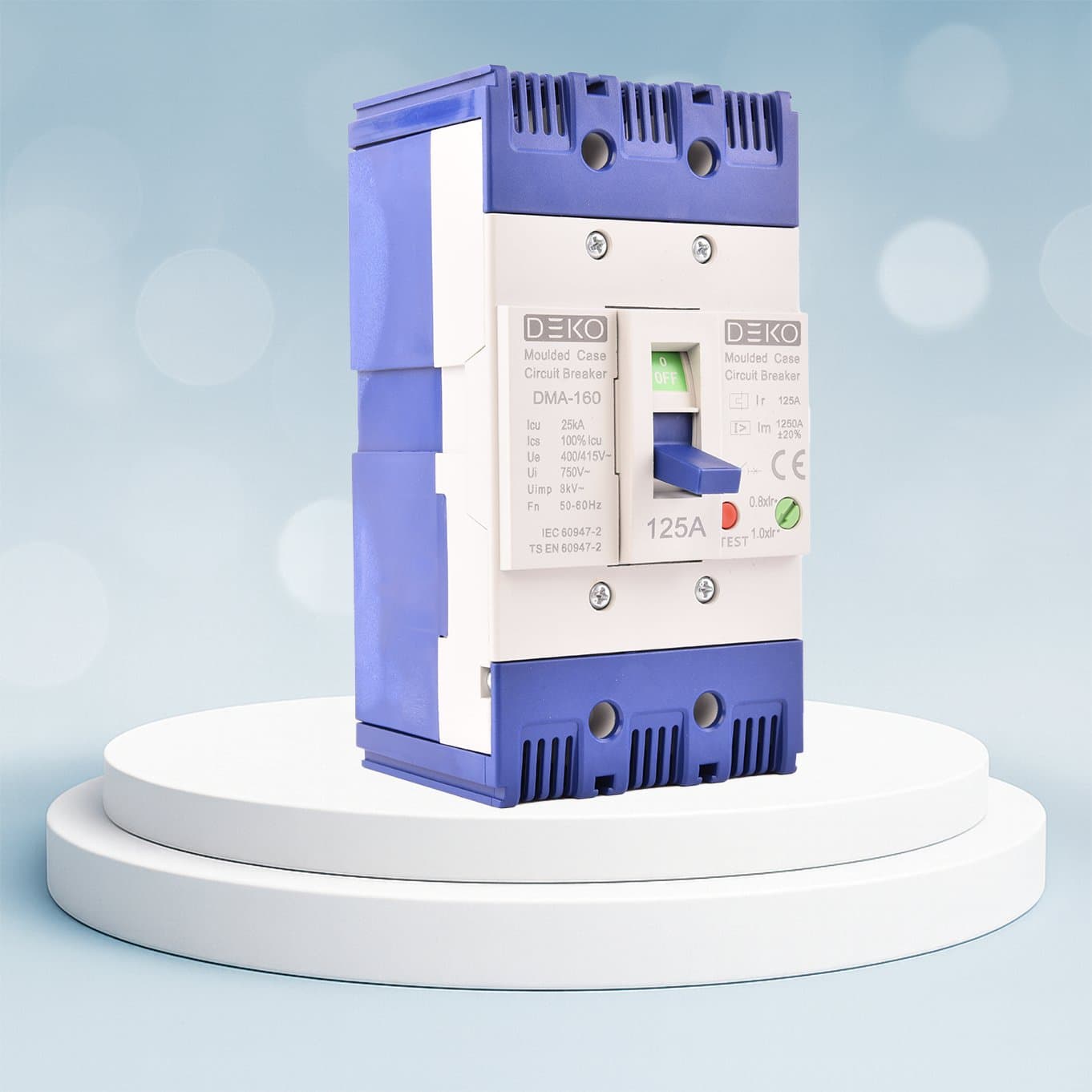

Molded Case Circuit Breakers (MCCB)



DEKO Molded Case Circuit Breakers (MCCBs) are designed to provide reliable protection against overloads and short-circuits in industrial, commercial, and infrastructure installations. With more than 30 years of Turkish manufacturing expertise, DEKO ensures high performance, safety, and compliance with international standards.







---







Key Features:



• ⚡ Wide Current Range: Available from 16A up to 1600A



• ⚡ Poles: 3P and 4P options



• ⚡ Breaking Capacity (Icu): 25kA to 100kA, depending on frame size



• ⚡ Rated Voltage: Up to 690V AC



• ⚡ Adjustable Trip Units: Thermal and magnetic protection for tailored system requirements



• ⚡ Standards Compliance: IEC/EN 60947-2 certified, proudly Made in Türkiye









---









Why Choose DEKO MCCBs?



• ✅ Made in Türkiye with world-class quality



• ✅ Reliable protection for medium to large-scale electrical systems



• ✅ Adjustable and flexible protection settings for diverse applications



• ✅ High breaking capacity for safe operation in demanding conditions



• ✅ Trusted safety and performance in global markets

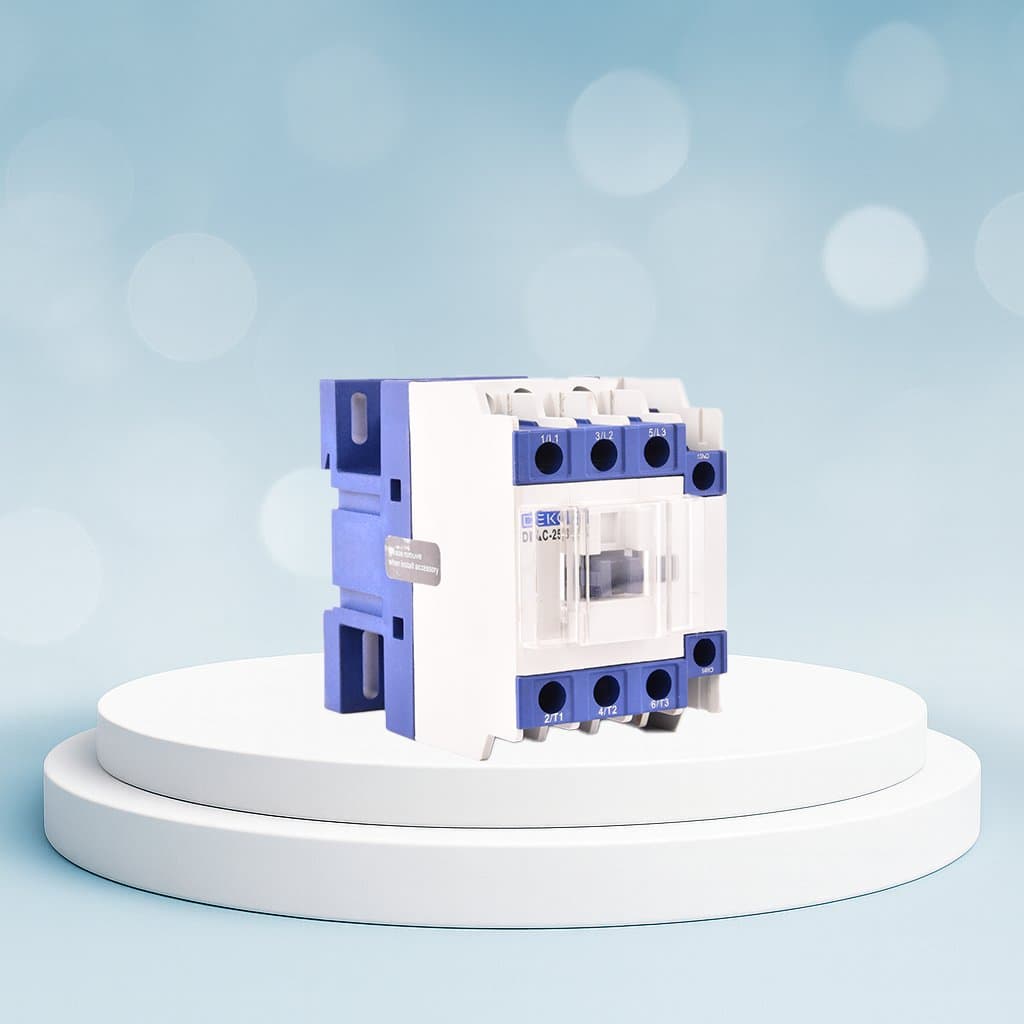

AC Contactors



DEKO AC Contactors are engineered to provide safe and efficient switching of electrical loads, including motors, heating systems, lighting, and other industrial applications. With over 30 years of Turkish manufacturing expertise, DEKO ensures durability, performance, and compliance with international standards.







---









Key Features:



• ⚡ Rated Operational Voltage (Ue): Up to 690V AC



• ⚡ Rated Current (Ie): Available from 9A to 95A



• ⚡ Control Circuit Voltage (Us): Wide range options (24V, 48V, 110V, 220V, 380V AC/DC)



• ⚡ Poles: 3P and 4P models available



• ⚡ Frequency: 50/60Hz



• ⚡ Auxiliary Contacts: Configurable with NO/NC options



• ⚡ Standards: IEC/EN 60947-4-1 compliant, proudly Made in Türkiye







---







Why Choose DEKO AC Contactors?



• ✅ Reliable performance in motor control, HVAC, and automation systems



• ✅ Wide range of control voltages for flexible applications



• ✅ Compact design for easy installation and integration



• ✅ Certified safety and international compliance



• ✅ Trusted Turkish manufacturing quality for global markets

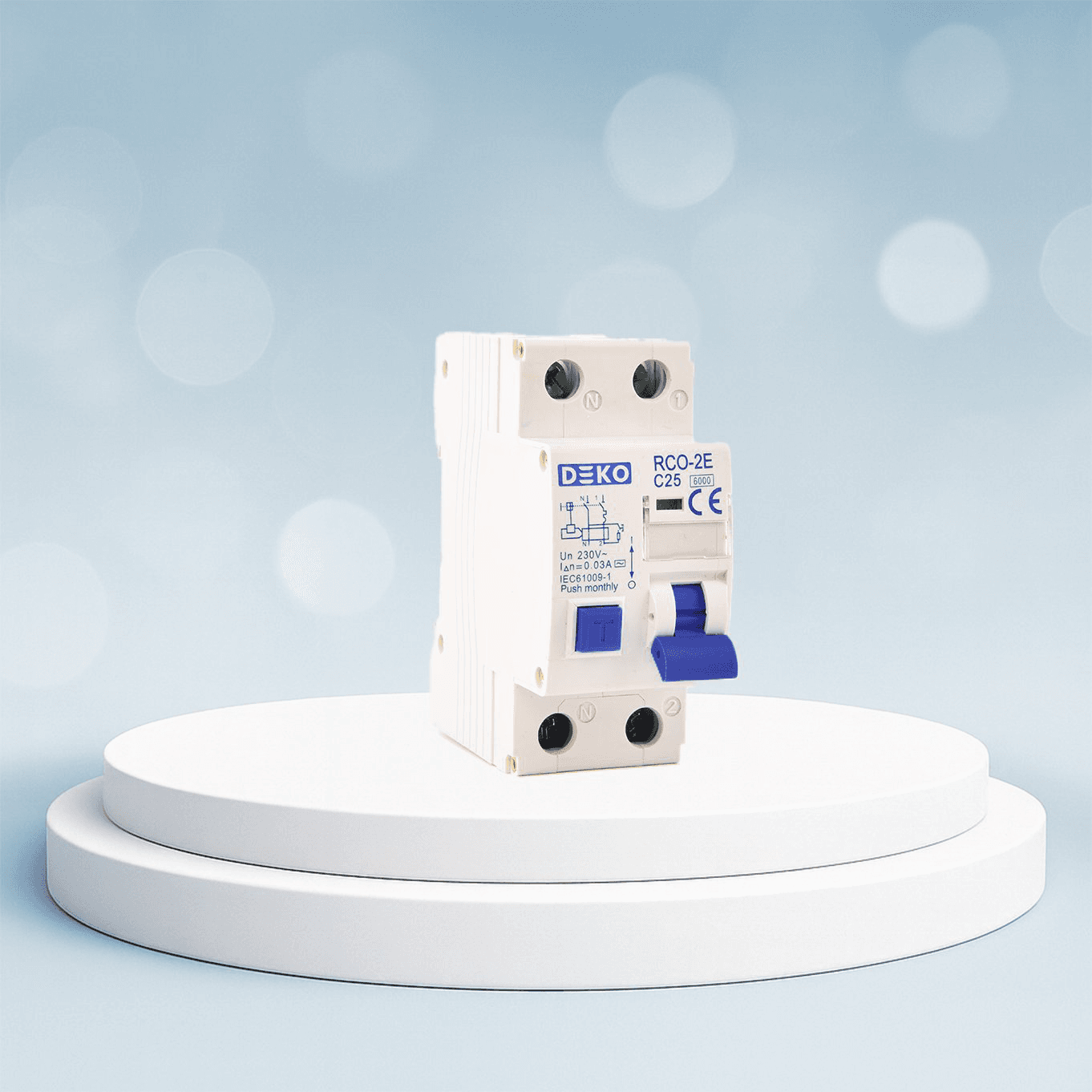

Residual Current Circuit Breakers with Overcurrent Protection (RCBO)



DEKO Residual Current Circuit Breakers with Overcurrent Protection (RCBOs) are designed to combine the functions of an RCCB and an MCB in a single device, ensuring complete protection against both overcurrent/short-circuit faults and earth leakage currents. With over 30 years of Turkish manufacturing expertise, DEKO RCBOs guarantee safety, durability, and compliance with international standards.





---



Key Features:



• ⚡  Wide Current Range: Available from 6A to 63A



• ⚡  Poles: Options include 1P+N and 3P+N



• ⚡  Breaking Capacity: 6kA and 10kA, depending on the model



• ⚡  Residual Current Ratings (IΔn): 10mA, 30mA, 300mA, and 500mA





• Tripping Curves:



  • ⚡  B Curve (3–5 In): Ideal for lighting and socket circuits with low inrush currents



• • ⚡  C Curve (5–10 In): Suitable for general use, motors, and inductive loads with moderate inrush currents



• Types:



  • ⚡  AC Type: Detects sinusoidal AC residual currents



• • ⚡  A Type: Detects both sinusoidal AC and pulsating DC residual currents



• ⚡  Rated Voltage: 230/400V AC, compatible with single-phase and three-phase installations



• ⚡  Compliance: Manufactured in Türkiye in accordance with IEC/EN 61009-1 standards







---







Why Choose DEKO RCBOs?



• ✅ Made in Türkiye with certified quality



• ✅ Dual protection: overcurrent + residual current in one device



• ✅ Flexible range for residential, commercial, and industrial applications



• ✅ Trusted safety and performance in global markets

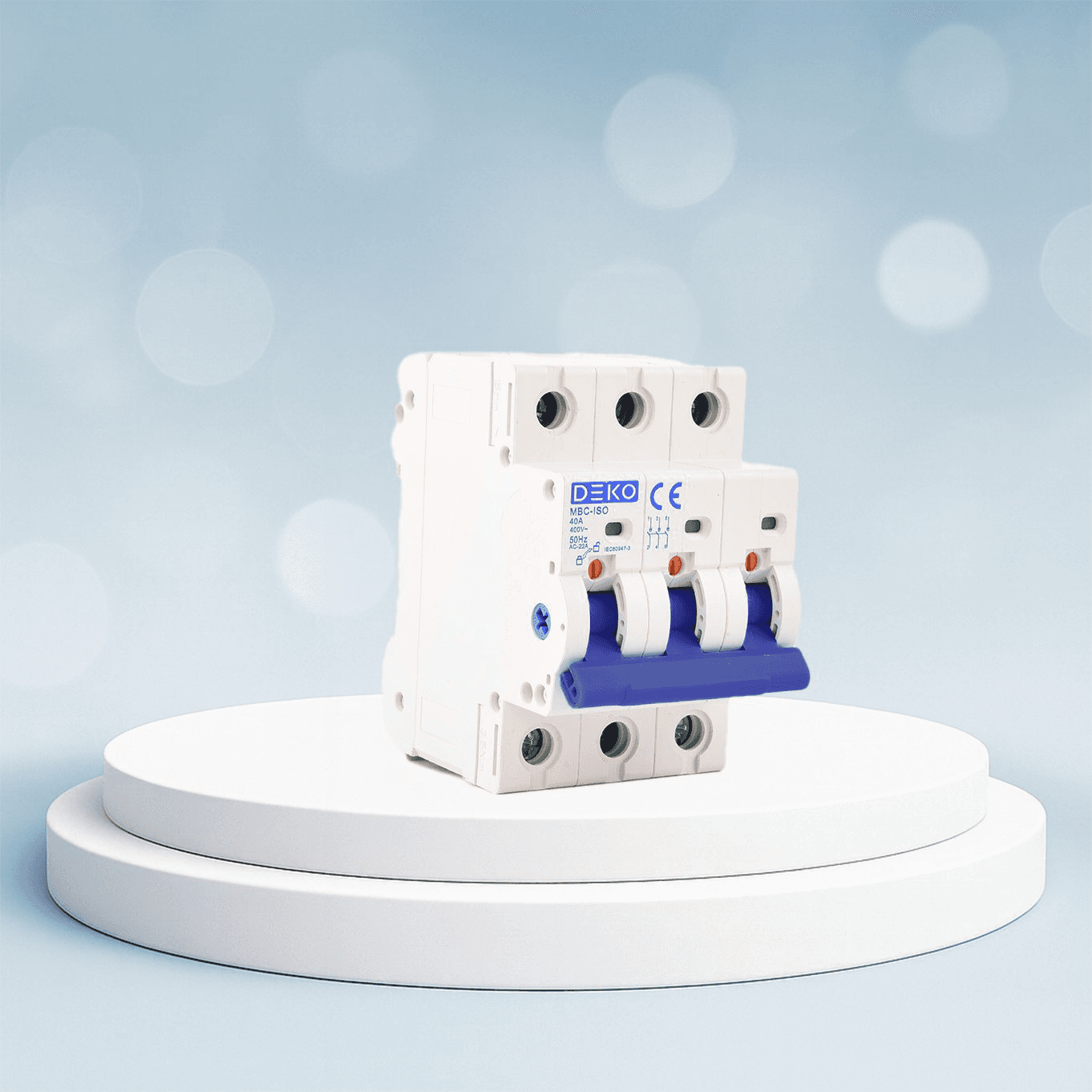

MCB Isolator (MCB-ISO)



DEKO MCB Isolators are designed to provide reliable switching and isolation for low-voltage electrical installations. Unlike standard MCBs, which offer protection against overcurrent and short-circuits, MCB Isolators function as dedicated isolation switches, ensuring safe disconnection of electrical circuits during maintenance or emergency situations. With over 30 years of Made in Türkiye expertise, DEKO delivers isolators that combine durability, safety, and compliance with global standards.





---





Key Features:



• ⚡  Wide Current Range: Available from 32A to 125A



• ⚡  Poles: Options include 1P, 2P, 3P, and 4P



• ⚡  Rated Voltage: 230/400V AC



• ⚡  Function: Provides switching and isolation only (no overcurrent or short-circuit protection)



• ⚡  Compliance: Manufactured in Türkiye according to IEC/EN 60947-3 standards







---





Why Choose DEKO MCB Isolators?



• ✅ Made in Türkiye with certified quality

• ✅ Reliable circuit isolation for safe maintenance and service operations

• ✅ Flexible range with multiple pole options (1P–4P)

• ✅ Trusted performance in residential, commercial, and industrial installations

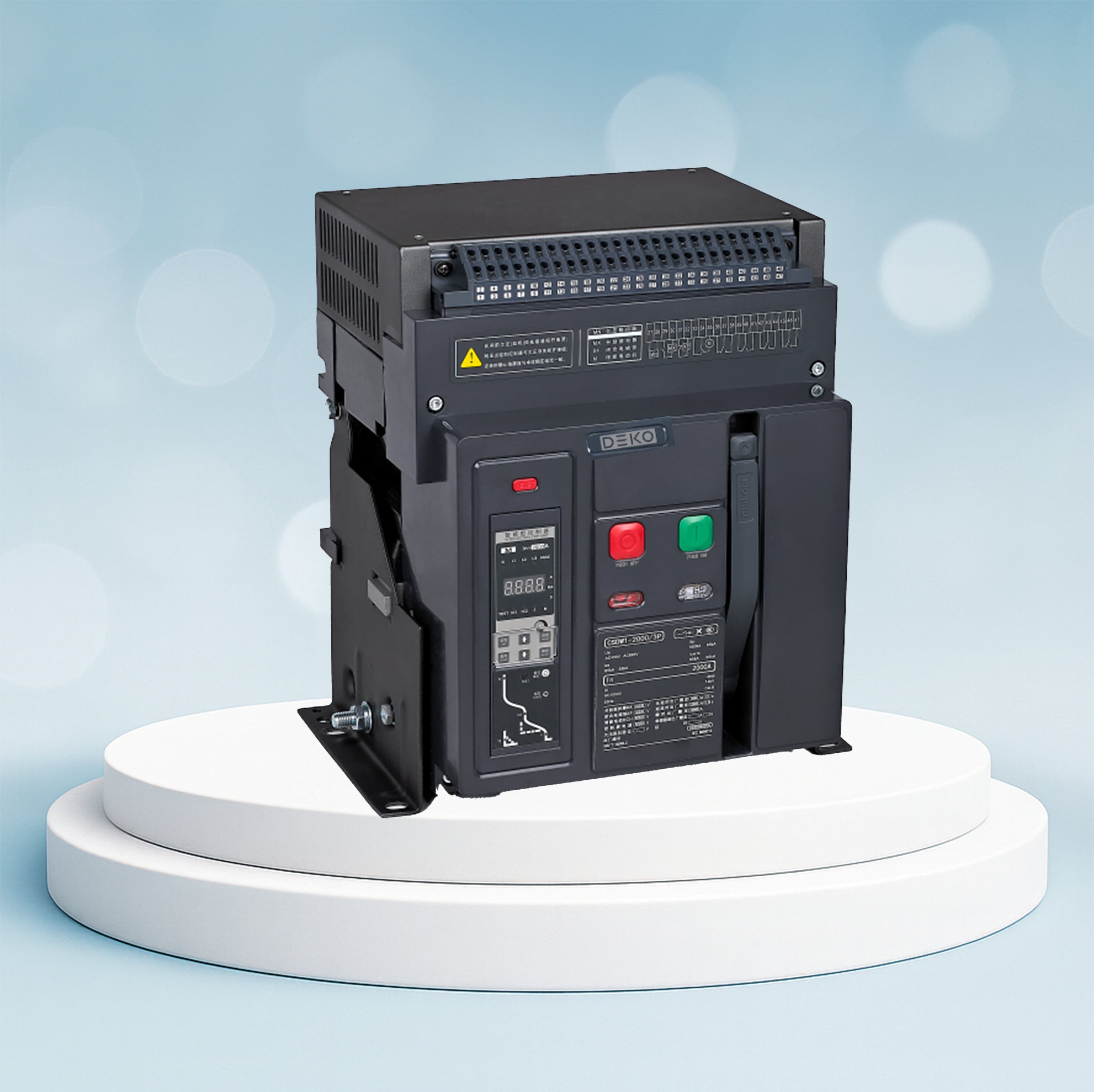

Air Circuit Breakers (ACB)



DEKO Air Circuit Breakers (ACBs) are designed to provide advanced protection and control for low-voltage power distribution systems in industrial, commercial, and infrastructure applications. With more than 30 years of Turkish manufacturing expertise, DEKO ensures reliability, safety, and full compliance with international standards.







---







Key Features:



• ⚡ Rated Current (In): 630A to 6300A



• ⚡ Rated Operational Voltage (Ue): Up to 690V AC



• ⚡ Breaking Capacity (Icu): 50kA, 65kA, 85kA, and 100kA at 415V AC



• ⚡ Poles: 3P and 4P options



• ⚡ Trip Units: Thermal-Magnetic and Electronic trip units for precise protection and monitoring



• ⚡ Standards: IEC/EN 60947-2 compliant, proudly Made in Türkiye







---





Why Choose DEKO ACBs?



• ✅ High breaking capacity for reliable protection of critical power systems



• ✅ Flexible current range suitable for a wide range of industrial and commercial applications



• ✅ Advanced trip unit technology for accuracy and selectivity



• ✅ Robust Turkish manufacturing quality, trusted in global markets



• ✅ Compliance with international standards for maximum safety

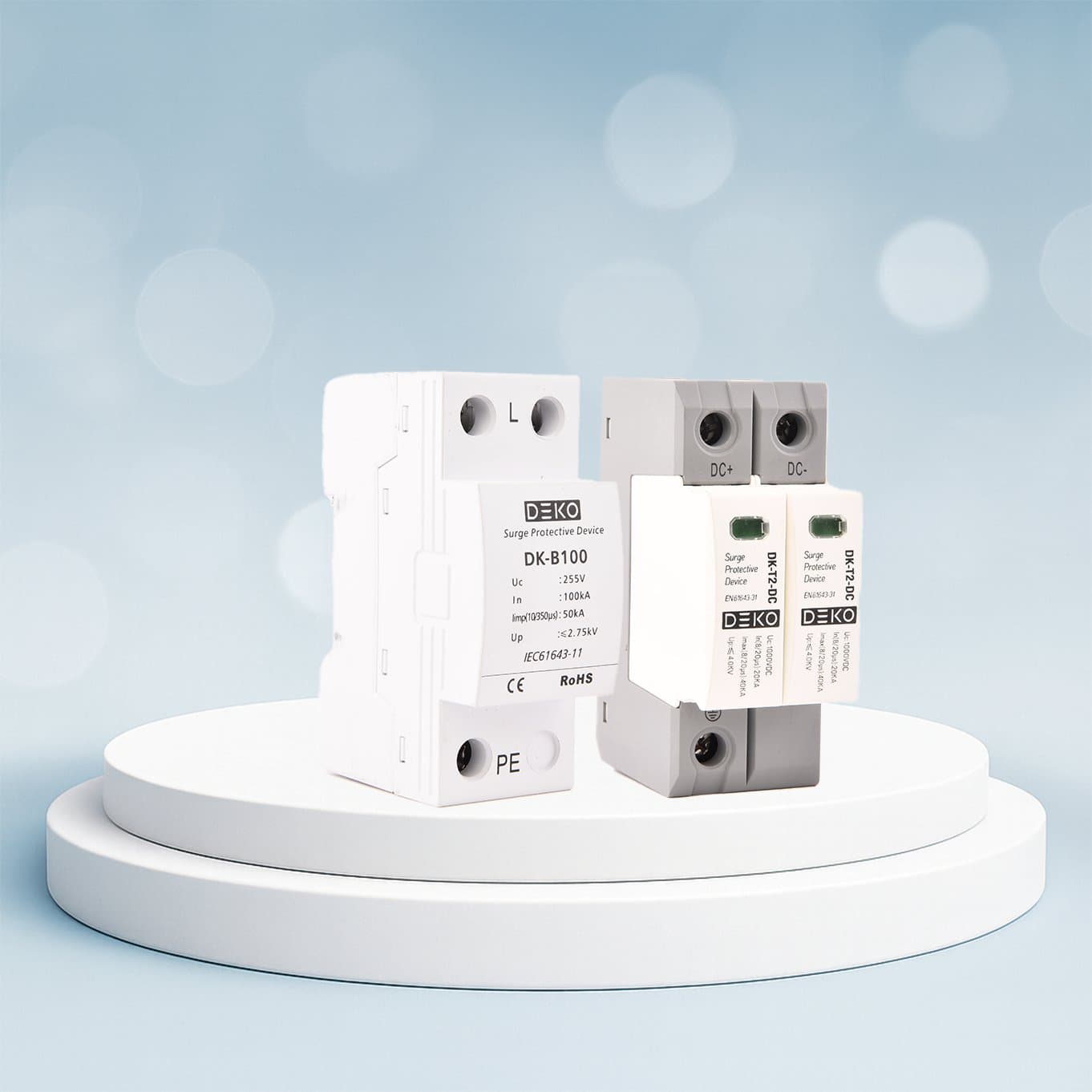

Surge Protection Device (SPD)



DEKO Surge Protection Devices (SPDs) are engineered to protect electrical systems and equipment from transient overvoltages caused by lightning strikes and switching surges. With more than 30 years of Turkish manufacturing expertise, DEKO ensures reliable performance, safety, and international compliance. In addition to AC models, dedicated DC SPDs are also available, making them ideal for solar power systems, battery energy storage, and EV charging applications.







---







Key Features:



• ⚡ Nominal Voltage (Un): 230/400V AC (dedicated DC versions available)



• ⚡ Maximum Continuous Operating Voltage (Uc): 385V AC



• ⚡ Nominal Discharge Current (In): 20kA (8/20µs)



• ⚡ Maximum Discharge Current (Imax): 40kA (8/20µs)



• ⚡ Voltage Protection Level (Up): ≤1.5kV



• ⚡ Poles: 1P, 2P, 3P, and 4P



• ⚡ Response Time: ≤25ns



• ⚡ Indicator Window: Visual fault indicator for real-time monitoring



• ⚡ Compliance: IEC/EN 61643-11 certified, proudly Made in Türkiye







---







Why Choose DEKO SPDs?



• ✅ Reliable surge protection for residential, commercial, industrial, and renewable systems



• ✅ AC and DC models available for flexible applications



• ✅ Made in Türkiye with certified quality and durability



• ✅ Fast response time and effective voltage limitation



• ✅ Trusted protection for sensitive equipment worldwide

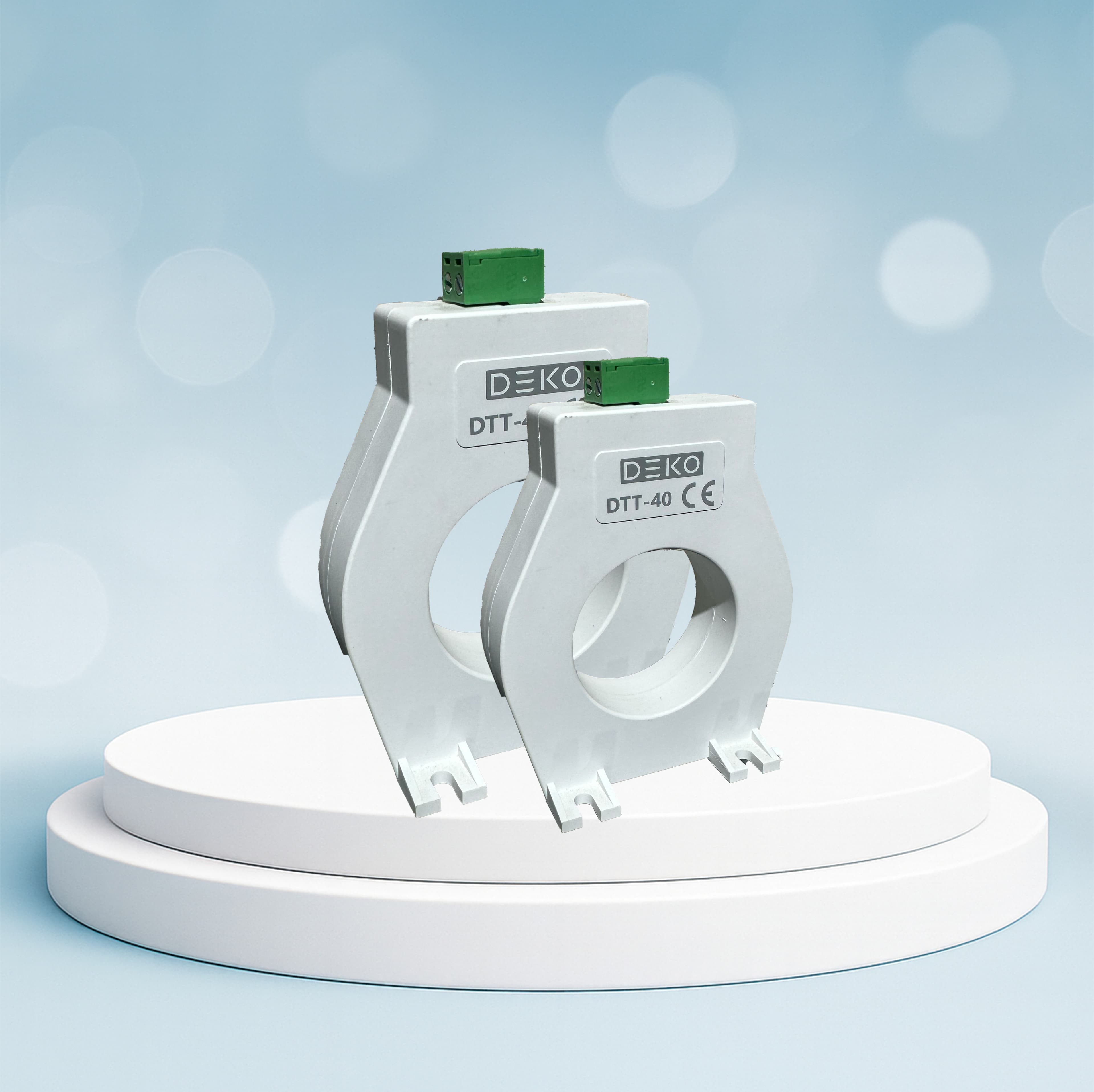

Zero-Phase Current Transformers



DEKO Zero-Phase Current Transformers  are designed to detect residual and leakage currents by monitoring the vector sum of all live conductors, ensuring reliable fault detection and enhanced safety in electrical systems. With more than 30 years of Turkish manufacturing expertise, DEKO guarantees durability, accuracy, and full compliance with international standards.





---



Key Features:



• ⚡ Inner Diameter Options: Available in multiple sizes (e.g., 28mm, 55mm, 80mm, and larger) for cables and busbars



• ⚡ Accuracy: High sensitivity for reliable leakage and residual current detection



• ⚡ Rated Voltage (Ue): Compatible with low-voltage protection systems



• ⚡ Output Signal: Designed for integration with DEKO Earth Leakage Relays (ELR) and Residual Current Devices (RCCB/RCBO)



• ⚡ Construction: High-grade insulation material ensuring safety and mechanical durability



• ⚡ Standards: IEC/EN compliant, proudly Made in Türkiye







---







Why Choose DEKO?



• ✅ Precise leakage current detection for enhanced protection



• ✅ Wide range of sizes for flexible installation options



• ✅ Compatible with DEKO ELR, RCCB, and RCBO products



• ✅ Durable, reliable, and Made in Türkiye



• ✅ Trusted safety solution for residential, commercial, and industrial systems

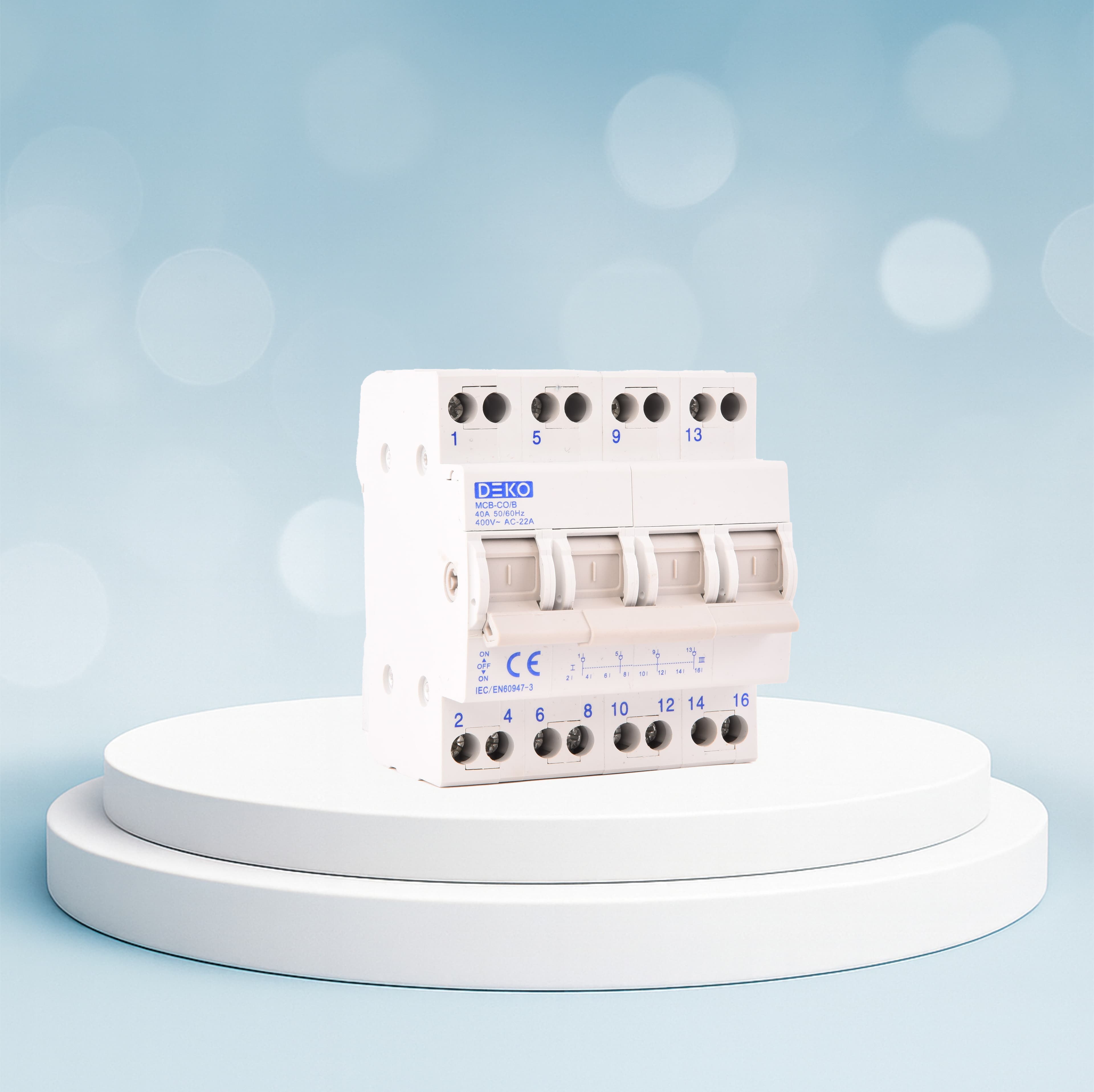

Changeover Switches



DEKO Changeover Switches are designed to ensure safe and reliable transfer between two power sources, making them essential for backup power systems, industrial automation, and energy continuity. With more than 30 years of Turkish manufacturing expertise, DEKO guarantees durability, safety, and full compliance with international standards.







---







Key Features:



• ⚡ Rated Current (In): 63A to 3150A



• ⚡ Rated Operational Voltage (Ue): Up to 690V AC



• ⚡ Poles: Available in 3P and 4P options



• ⚡ Utilization Category: AC-22A (suitable for resistive and mixed loads)



• ⚡ Switching Mode: Manual operation with clear ON-OFF-Changeover positions



• ⚡ Standards: IEC/EN 60947-3 compliant, proudly Made in Türkiye









---









Why Choose DEKO Changeover Switches?



• ✅ Reliable switching between main and backup power sources



• ✅ Wide current range to cover residential, commercial, and industrial applications



• ✅ Compact and robust design for easy installation and integration



• ✅ Trusted Turkish quality with international certification



• ✅ Ensures uninterrupted power and operational safety

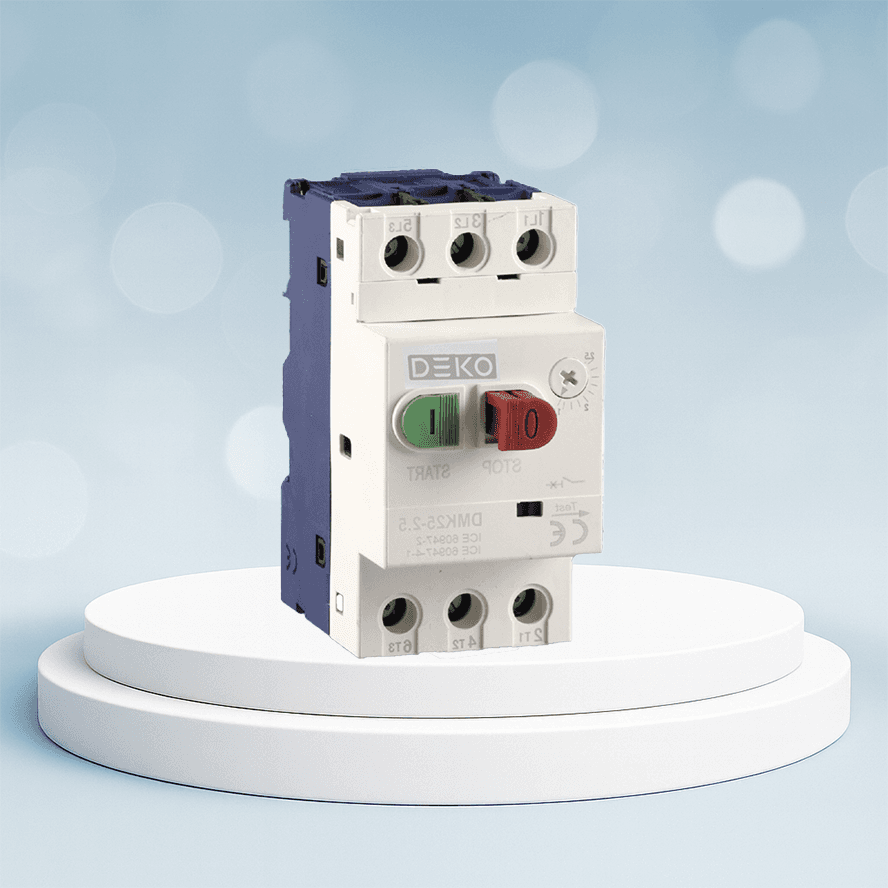

Motor Protection Switches



DEKO Motor Protection Switches (DMK Series) are designed to provide comprehensive protection for electric motors against overload, short circuit, phase failure, and other faults. With a modular design, compact size, and integrated thermal relay, they offer strong functionality, versatility, and reliability in demanding applications. Proudly Made in Türkiye, DEKO ensures every device complies with IEC/EN international standards for safety and performance.







---







Key Features:



⚡ Modular Compact Design: Small volume, easy installation, high reliability.



⚡ Integrated Thermal Relay: Ensures overload protection and extends motor lifetime.



⚡ Compliance: Conforms to IEC 60947-2, IEC 60947-4-1, and EN 60947-1 standards.



⚡ Protection Class: UV2/UV3 series covers up to IP65 for reliable performance in harsh environments.



⚡ Flexible Control Options: Available in button-operated and change-over switch-controlled models.



⚡ Variants:

  • Thermo-magnetic with button control

  • Thermo-magnetic with change-over switch control

  • Magnetic-only with change-over switch control (without thermal protection)







---







Typical Applications:



⚡ Industrial and commercial motor installations



⚡ Pumps, fans, and compressors



⚡ Conveyors and machinery drives



⚡ HVAC and ventilation systems



⚡ General-purpose electric motor circuits







---







Technical Snapshot:



⚡ Rated Voltage: 230/400 V AC



⚡ Protection Functions: Overload, short-circuit, phase failure, under-voltage



⚡ Protection Grade: Up to IP65 (UV2/UV3 series)



⚡ Installation: Modular design for panel integration







---







Why Choose DEKO Motor Protection Switches?



✅ Made in Türkiye with world-class quality.



✅ Reliable motor protection against overload, short circuit, and phase faults.



✅ Flexible control options to suit different installation requirements.



✅ Certified safety and performance trusted in global markets.

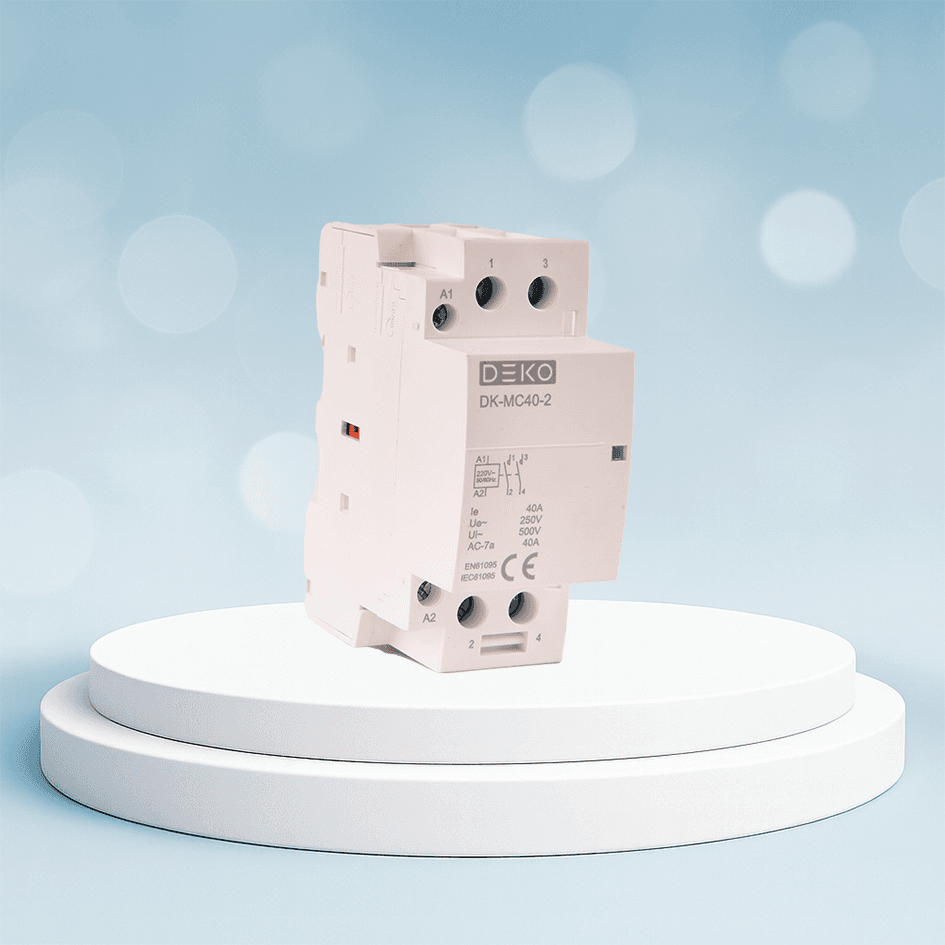

Modular Contactors



DEKO Modular Contactors are designed for reliable switching and control of electrical circuits in residential, commercial, and industrial applications. They provide safe and efficient operation for lighting, heating, ventilation, and other low-voltage loads. With advanced engineering and high-quality manufacturing, DEKO ensures durability, safety, and compliance with international standards.







---







Key Features:



⚡ Rated Current Range: Available from 16A to 100A.



⚡ Poles: 1P, 2P, 3P, and 4P configurations.



⚡ Rated Operational Voltage: Up to 400V AC.



⚡ Control Voltage Options: AC and DC coils available.



⚡ Silent Operation: Low-noise performance suitable for residential use.



⚡ Long Mechanical & Electrical Life: Engineered for durability in frequent switching applications.







---







Applications:



⚡ Lighting control in residential and commercial buildings.



⚡ Heating and ventilation systems.



⚡ Motor switching for light industrial use.



⚡ Energy management and automation systems.



⚡ Renewable energy and smart building installations.





---





Compliance:



Manufactured in Türkiye according to IEC/EN 61095 standards.





---







Why Choose DEKO Modular Contactors?



✅ Made in Türkiye with world-class quality.



✅ Reliable, safe, and silent operation.



✅ Wide range for residential, commercial, and industrial needs.



✅ Certified performance trusted in global markets.

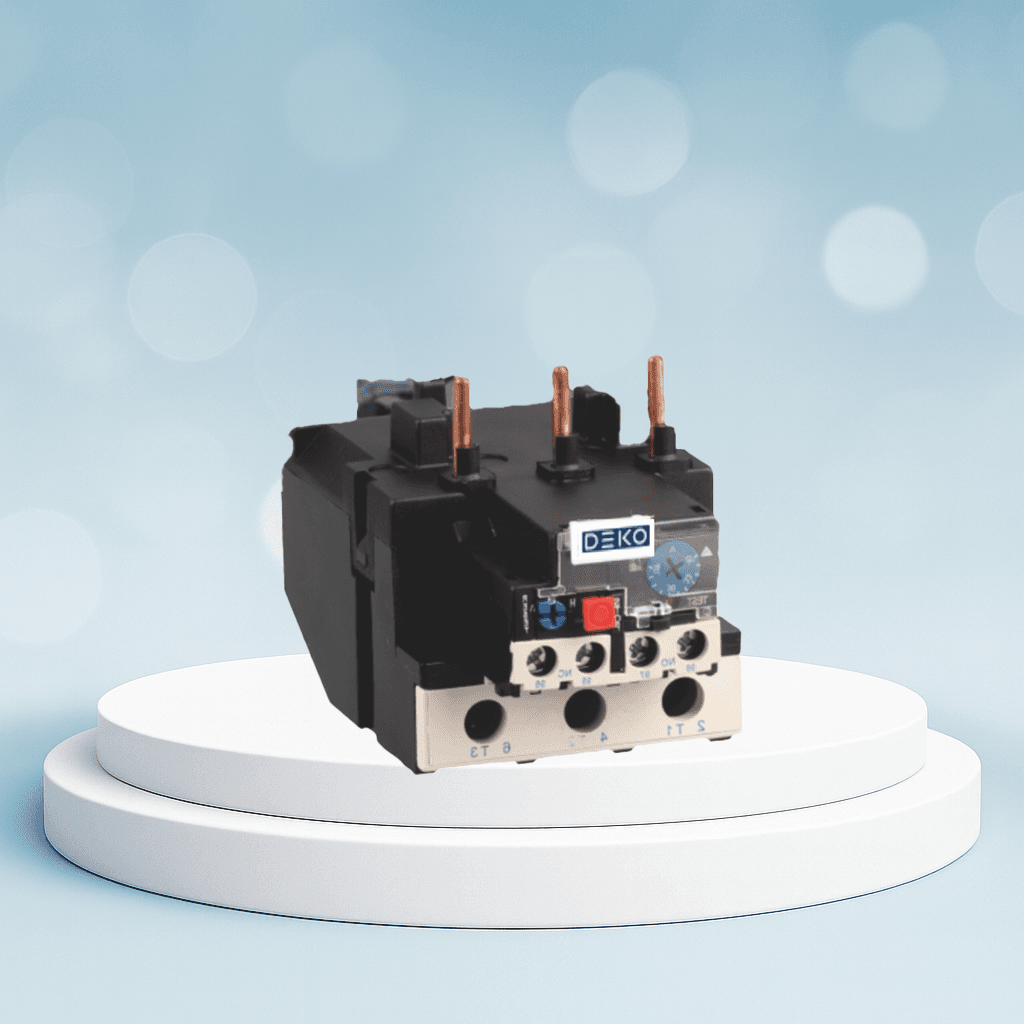

Thermal Overload Relays (TOR)



DEKO Thermal Overload Relays protect motors against overload and phase-fault conditions, ensuring reliable, selective, and cost-effective protection in industrial and commercial motor control panels. Paired with DEKO contactors, they form a compact motor starter that delivers accuracy, uptime, and long service life. With over 30 years of Turkish manufacturing expertise, DEKO stands for reliability, safety, and compliance with international standards.







---







Key Features:





⚡ Function: Thermal (bi-metal) overload protection for AC motors, with phase-loss/imbalance sensitivity



⚡ Setting Range: Multiple adjustable ranges to match motor full-load current (FLC)



⚡ Trip Class: Class 10A (optional Class 20 depending on model/selection) for accurate, application-based protection



⚡ Reset Modes: Manual / Automatic reset, with clear trip indication



⚡ Contacts: 1NO + 1NC auxiliary contacts for signaling and interlocking



⚡ Controls: TEST and STOP buttons for commissioning and maintenance



⚡ Mounting: Direct coupling to DEKO contactors; DIN-rail adaptor option



⚡ Compensation: Ambient temperature compensation and differential protection behavior



⚡ Coordination: Engineered to coordinate with DEKO contactors in motor starters



⚡ Standards: IEC/EN 60947-4-1 compliant, proudly Made in Türkiye







---







Why Choose DEKO Thermal Relays?



✅ Motor uptime & safety: Accurate thermal protection prevents winding damage and nuisance trips



✅ Easy integration: Seamless pairing with DEKO contactors for compact, tidy panels



✅ Flexible selection: Wide adjustable ranges reduce SKU count and simplify inventory



✅ Service-friendly: Tool-free reset, front-face TEST/STOP, and clear status indication



✅ Global compliance: Built to international standards for dependable, repeatable performance



Analog Timer



DEKO Analog Time Switches are designed to automatically control electrical appliances at specific times of the day. With an electromechanical design and a precise servomotor, they provide reliable, durable, and easy-to-set solutions for residential, commercial, and industrial applications. Proudly Made in Türkiye, DEKO ensures every timer delivers quality, safety, and compliance with international standards.







---







Key Features:



⚡ Precise Timing with Servomotor: Stable and accurate switching performance.



⚡ Power-Loss Reserve: Maintains the program for up to 100 hours during power outages.



⚡ Supply Voltage: Operates with 220 V / 50 Hz.



⚡ Independent Auxiliary Contact: Usable in both AC and DC circuits up to 400 V.



⚡ 96 Program Segments: Each step corresponds to 15 minutes on the dial.



⚡ 24-Hour Dial: Entire day displayed on a single disc.



⚡ Two Operating Modes: Selectable manual or automatic operation.



⚡ DIN-Rail Mounting: Fits standard 36 mm (EN 50022) rail.



⚡ Protection Recommendation: Must be protected by an independent thermal-magnetic circuit breaker (automatic fuse).



⚡ Installation Note: Should not be installed directly next to contactors or devices generating strong magnetic fields.





---





Typical Applications:





⚡ Park and agricultural irrigation systems



⚡ Street and area lighting



⚡ Heating, cooling, and ventilation control



⚡ School bell systems



⚡ Energy-saving load management



---



Technical Snapshot:





⚡ Operating Voltage: 220 V ~ 50 Hz



⚡ Auxiliary Contact Rating: Up to 400 V AC/DC



⚡ Programming Resolution: 96 steps × 15 min



⚡ Mounting: DIN rail 36 mm (EN 50022)



⚡ Backup (Reserve): Up to 100 hours







---







Why Choose DEKO Analog Timers?



✅ Made in Türkiye with world-class quality.



✅ Reliable and precise control for residential, commercial, and industrial systems.



✅ Flexible integration with irrigation, lighting, HVAC, and energy-saving applications.



✅ Certified safety and performance trusted in global markets.



Hot Aerosol Fire Extinguishers



DEKO Hot Aerosol Fire Extinguishers are engineered to deliver rapid and reliable fire suppression in enclosed spaces such as electrical distribution panels, small enclosures, machinery compartments, and industrial cabinets. Activated automatically by heat or open flame, the aerosol agent floods the area and extinguishes the fire within seconds — ensuring maximum protection for equipment, property, and personnel.







---







Key Features:





⚡ Main Content: Hot aerosol fire-extinguishing agent.



⚡ Shell Material: High-durability ABS.



⚡ Ambient Environment: Suitable for extreme conditions from –50°C to 90°C.



⚡ Response Time: Activates in ≤ 6 seconds when exposed to fire or temperatures above 170°C.



⚡ Oxidizer Content: Sr(NO₃)₂ 60% + KNO₃ 20%.



⚡ Operating Condition: Automatically triggers upon open flame or heat above 170°C.



⚡ Installation Rail Type: Standard 3 mm rail mounting.



⚡ Quantity per Carton: 100 pcs.



⚡ Thermosensitive Cable Options: 10 cm / 50 cm / 100 cm / 200 cm.







---









Technical Characteristics:





⚡ Thermosensitive Wire:

Temperature-sensing induction wire detects heat along the entire cable length and activates internally at 170°C.



⚡ Shelf Life:

Operational lifespan of ten years.



⚡ Fire Extinguishing Range:



• 100 g aerosol → 1 m³ protection range

• 10 g aerosol → 0.1 m³

• Suitable for small enclosures, columns, and electrical boxes.





⚡ Recommended Applications:



• Household PZ30 boxes: 0.1 m³

• Small distribution boxes: 1 m³

• High/low-voltage cabinets: 3 m³ recommended





⚡ Installation:

Easy mounting using guide rails.







---









Why Choose DEKO Hot Aerosol Units?





✅ Maintenance-free protection with a 10-year service life.



✅ Ultra-fast activation for early-stage fire suppression.



✅ Works in extreme temperatures from –50°C to +90°C.



✅ Perfect for electrical cabinets, machines, vehicles, and compact enclosures.



✅ Safe, clean, non-pressurized, and environmentally friendly fire-extinguishing method.
